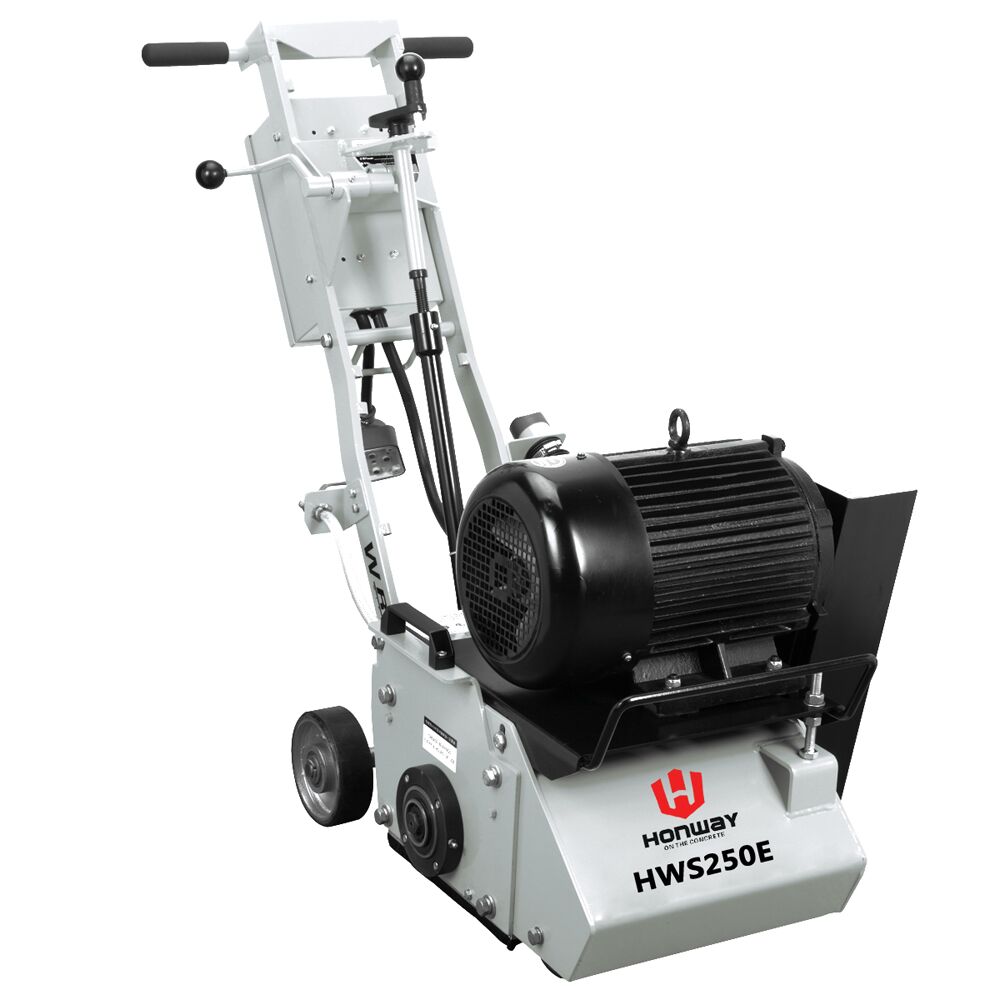

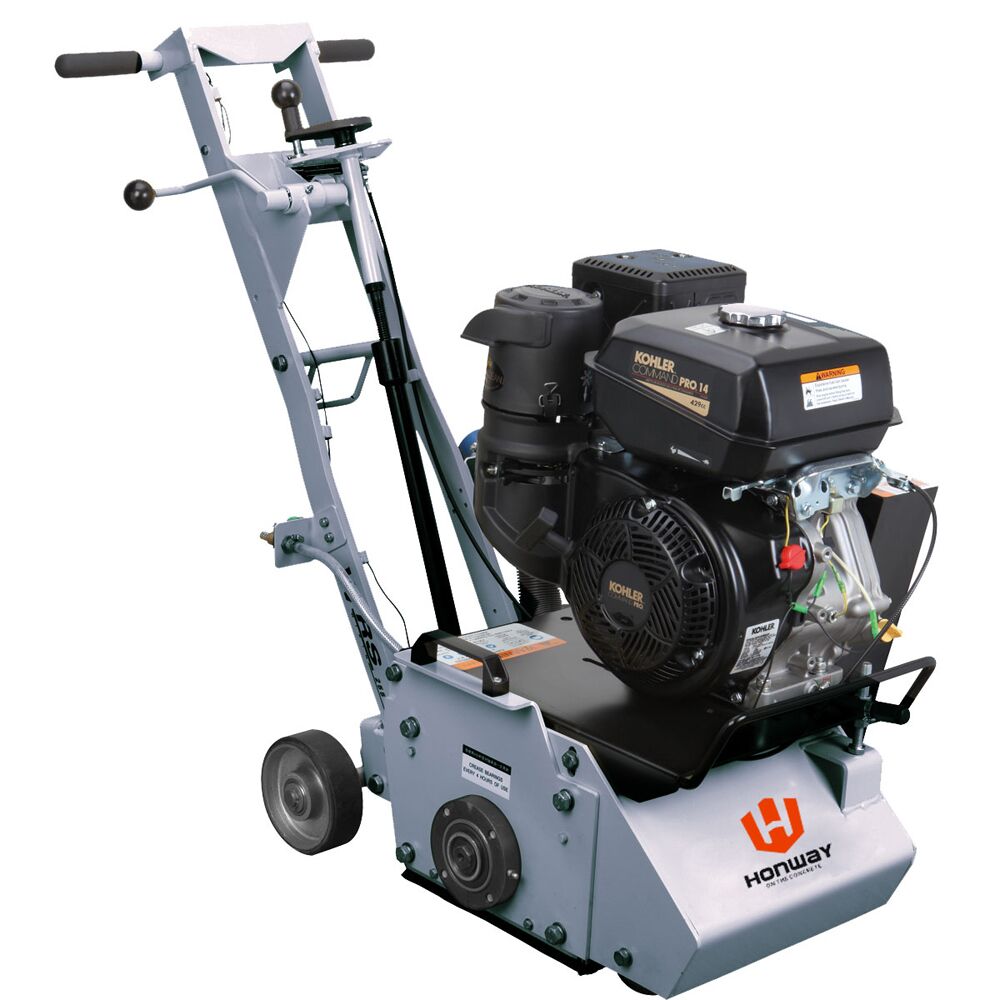

HWS250 Walk behind Concrete Floor Planer

HWS250 Walk Behind Concrete Floor Surface Planer Machine

Walk-behind concrete floor surface planer machine also called as concrete grooving machine or concrete milling machine. Cut or scarify the surface of the concrete with the use of cutting tools that rotate around a drum. Concrete floor milling machine also can be used in other floors and road like cement, asphalt, epoxy, hardened concrete, to remove coatings (such as floor tile mastics, rubbery adhesives, or epoxy), grooving walkways and sidewalks to make them slip-resistant, and leveling misaligned concrete joints and uneven surfaces.

Application

Removing traffic line and coatings;

Small, narrow areas or edges;

Sidewalk repair;

Floor preparation or cleaning;

Creating nonslip surfaces.

Technical Specification

Advantages

1, 10” 250mm scarify floor maximum 450-650sqft. depth at 1/8” per pass per hour.

2, Chip traffic line at 700-900 mineral ft. per hour.

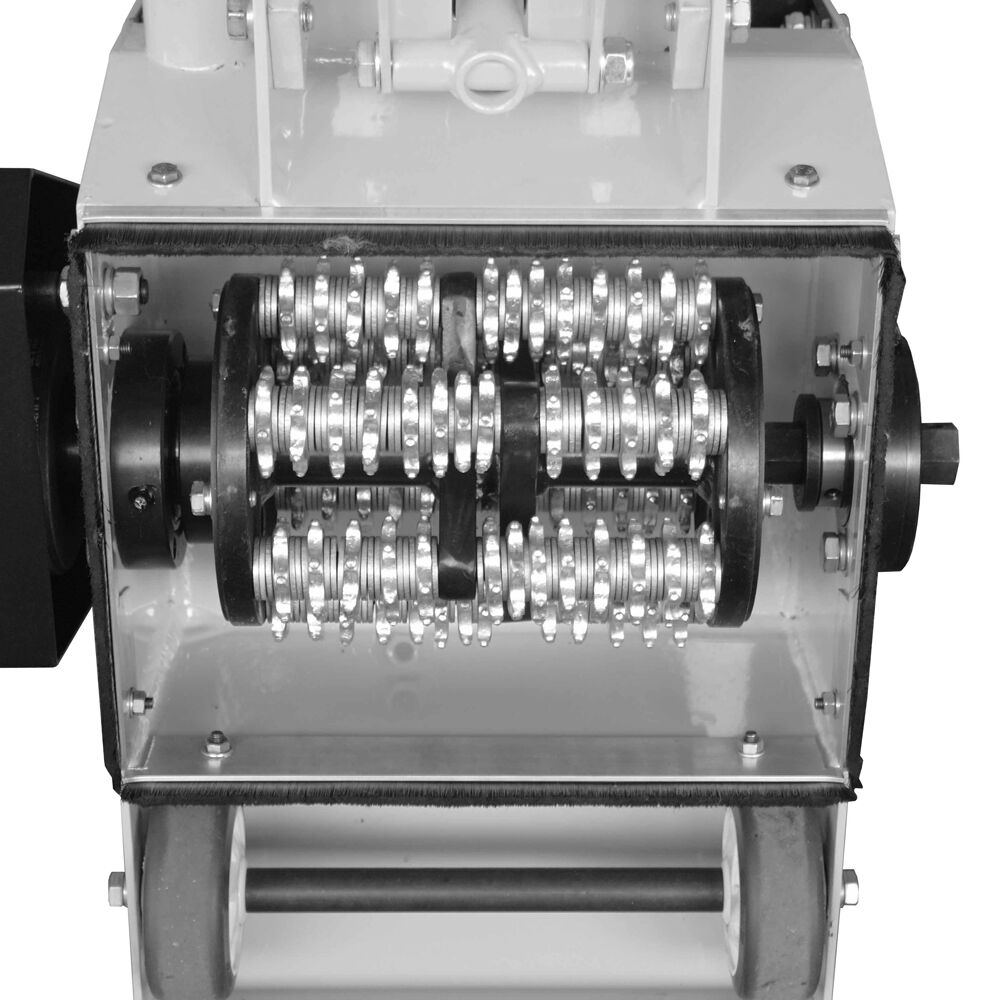

3, Quick-change drum designs that allow you to switch or replace cutters in minutes.

4, The vibration of the concrete floor planer machine is relatively larger than the floor grinder. So all the spare parts and connections are strongly anti-vibration.

5, Mounted lifting handles are specially designed, so the loading and unloading are made easy.

6, Vacuum port is 2”.

7, Drum is designed for heavy-duty milling, with a motor speed of 2800rpm.

8, Rod on drum perfectly matches the drum and would not break drum easily.

9, Tips on cutters are 4mm thickness, can be enlarged to 6mm or 8mm.
