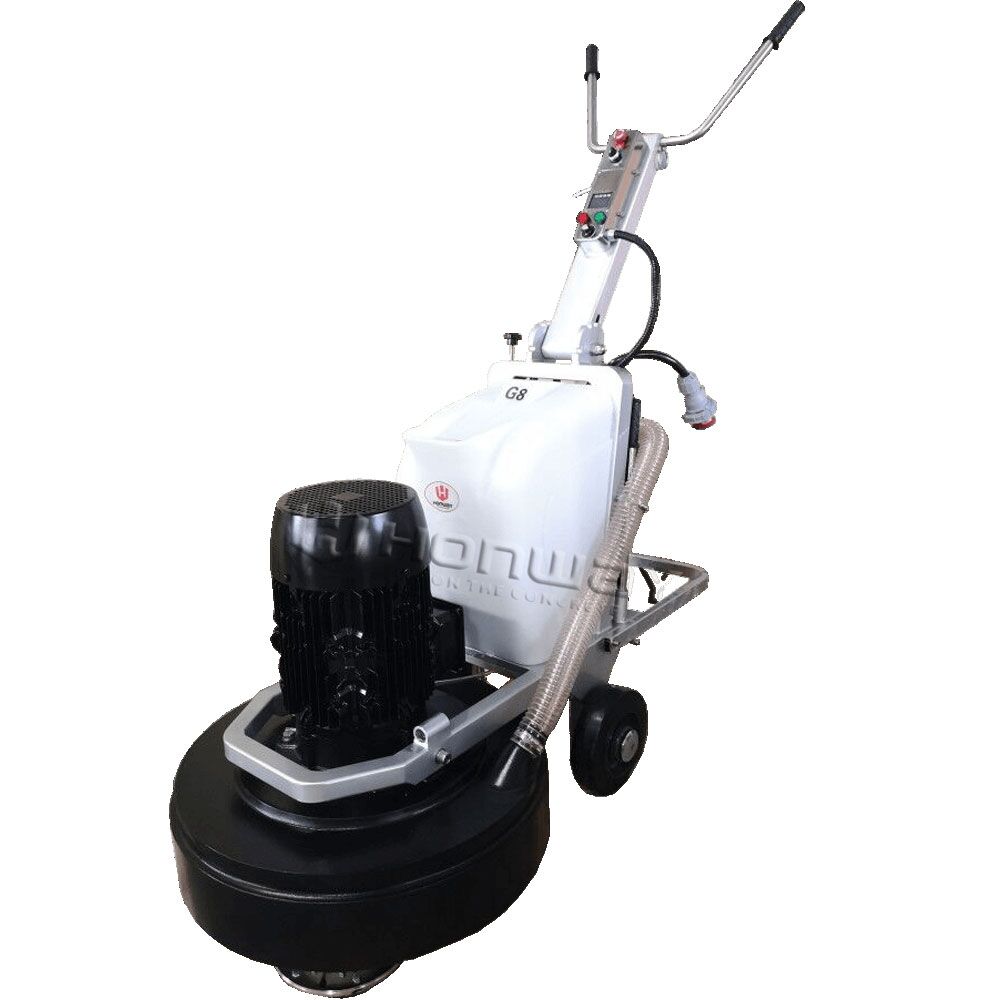

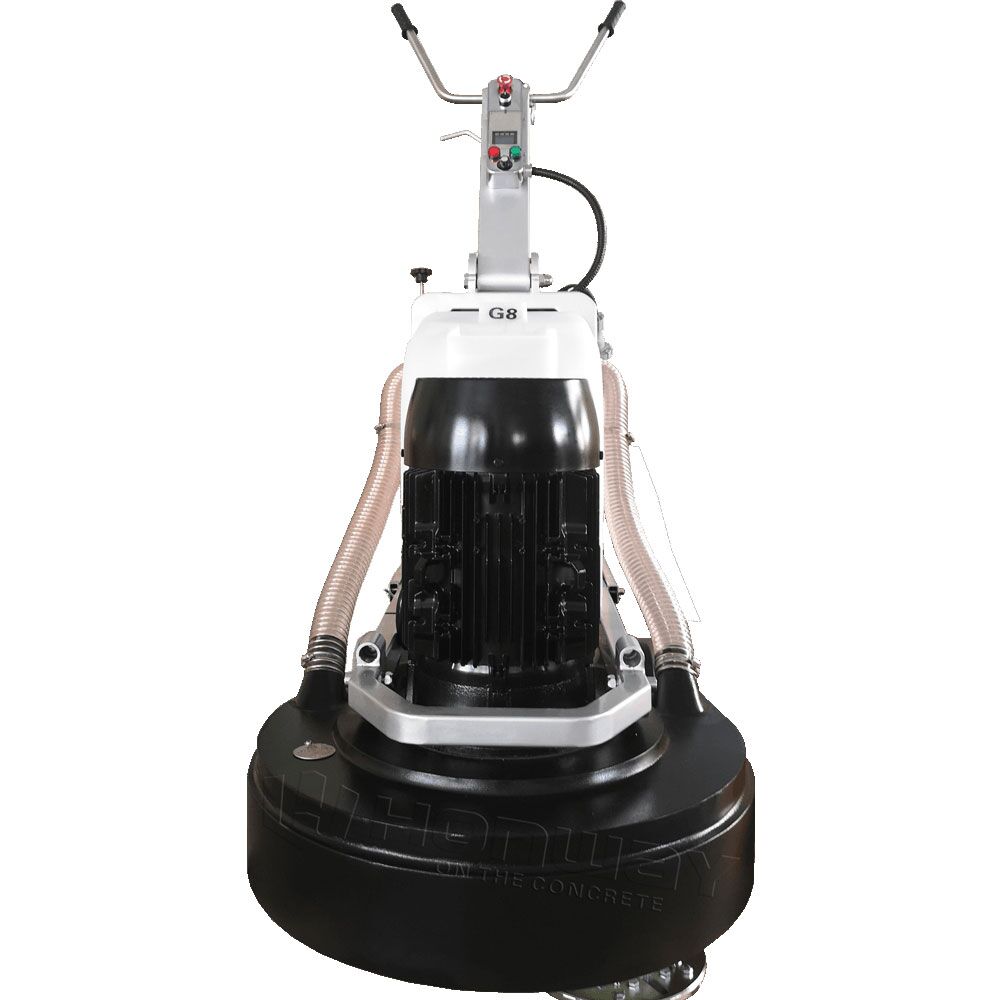

HW-G8 220V 380V Concrete Grinder Polisher

Key Features

The tool change system is quick, simple and safe.
Strong gear box with high strength aluminum alloy gears for a longer life.
Adjustable working pressure by adding iron weights.
Using counter rotating planetary design, touching the floor evenly.
Adjustable handle bar can be put at multiple handle positions for more convenient operation and transportation.
Built-in phase loss protection, leakage protection, over-load protection in the motor guarantee the operator’s safety.

HW-G8 220V 380V concrete grinder polisher, the best commercial concrete floor grinder!

HONWAY’s concrete grinder products are used in small and large commercial projects, outdoors and indoors, from high-end residential to large factories, garage, shopping malls, industrial factory building, warehouses and large retail stores, the best one commercial floor grinder is HW-G8 electric industrial walk behind dustless concrete floor grinder polisher.

HW-G8 concrete grinder polisher is large size among the planetary gear structure series, the grinding width 750mm with 3 pieces of grinding disc, 15hp motor, 18.5hp inverter (220V), variable motor speed 300-1800rpm.

It is driven by planetary gear design. It is an versatile grinder suitable for many different applications.

The best walk behind dustless concrete floor grinder can be used for grinding and polishing many kinds of floors such as concrete, garage floor, commercial floor, Industrial floor, natural stone, .

Compared to non planetary concrete grinder, the planetary grinder is more powerful and effective, maximizing overall production hours and minimizing maintenance time.

Application

1, Grinding and polishing on surfaces covering concrete, epoxy, stone, marble, granite, terrazzo, etc.

2, Old epoxy removal, repairing.

3, Prepare the floor for coatings and epoxy.

Technical Specification

Model HW-G8A HW-G8B
Power 220V, 11KW 380V,11KW
Hertzs 50/60HZ 50/60HZ
Inverter 15KW 15KW
Current 39.2A 22.6A
Plate Speed 300-1600rpm 300-1600rpm
Work Area 800mm 800mm
Disc Diameter 250mm*3 250mm*3
Extra Weight 30KG 30KG
Weight 340KG 340KG
L*W*H 970*750*1050mm 970*750*1050mm

Advantages

1. The tool change system is quick, simple and safe.

2. Strong gear box with high strength aluminum alloy gears for a longer life.

3. Adjustable working pressure by adding iron weights.

4. Using counter rotating planetary design, touching the floor evenly.

5. Adjustable handle bar can be put at multiple handle positions for more convenient operation and transportation.

6. Built-in phase loss protection, leakage protection, over-load protection in the motor guarantee the operator’s safety.



FAQ

Q: Does your factory accept custom-made?

A: Yes, we can provide OEM and ODM service to customer. Including different color, motor, inverter etc. We also can mark your own logo and brand on the machine. You just need send us the drawing or sample, we will produce the according to them. And we will not sell this kind of products to other customers only if we get your permission.

Q: How to know your machines’ quality before we order the product?

A: Firstly, we have the manufacture base of our own, CNC manufacture processing and QC check procedures. More and more people in the world to use Chinese brand product because of the high quality and very good competitive price. we are specialized in producing floor grinding machines since 2006.

Secondly, we have sold our products to 100 countries around the world, we are developing and expanding distributors around the world, and also you can visit our factory at any time.

Thirdly, the warranty of motor, inverter and other main parts are ONE year.

We promise to help maintenance our machine forever. If exceed guarantee time, spare parts broken due to long time using, we will always have the spare parts in stock, you just need pay the cost price and Express fee of the parts, and we will send you steps or video to help you repair. Our after-sale service is open to you at any time, even during our holidays.

All in all, we welcome sample orders or come visit our factory to test the quality.

Q:What shall I do to start concrete floor polish?

A: We recommend using a complete surface treatment system including: concrete grinder polisher machines, industrial vacuum cleaners (dustless)with Hepa filters, diamond tools, chemicals (thickeners, sealants, dyes-optional).

Of course it is also important to receive proper training to ensure that your project is completed in a professional, timely and cost-effective manner.

Q: Are you real manufacturer ?How can I visit your factory?

A: Yes of course, we are the manufacturer! We warmly welcome clients to visit our factory to inspect our factory at any time. Our factory is located in Changsha city (Well known Capital of Construction Machinery in China).

Recommend Accessories

Video
