4 planetary heads make the machine more smooth and stable;
HW-G9 has 900mm wide plate and 15hp power guarantees large job;
Automatic level adjust system ensures good smoothness and stable operation.

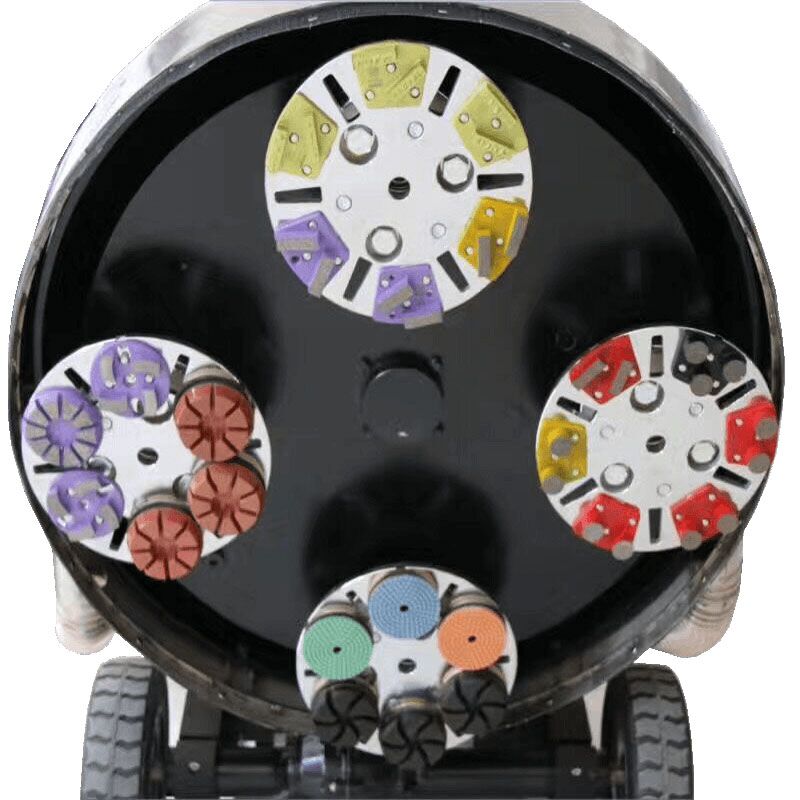

The grinding disk could be versatile for different shape of diamond tools;
3 phrase frequency converter is up to 2000 rpm, which could increase machine’s capability,but the motor is manufactured to be very tolerant to voltage drop in a large scale.

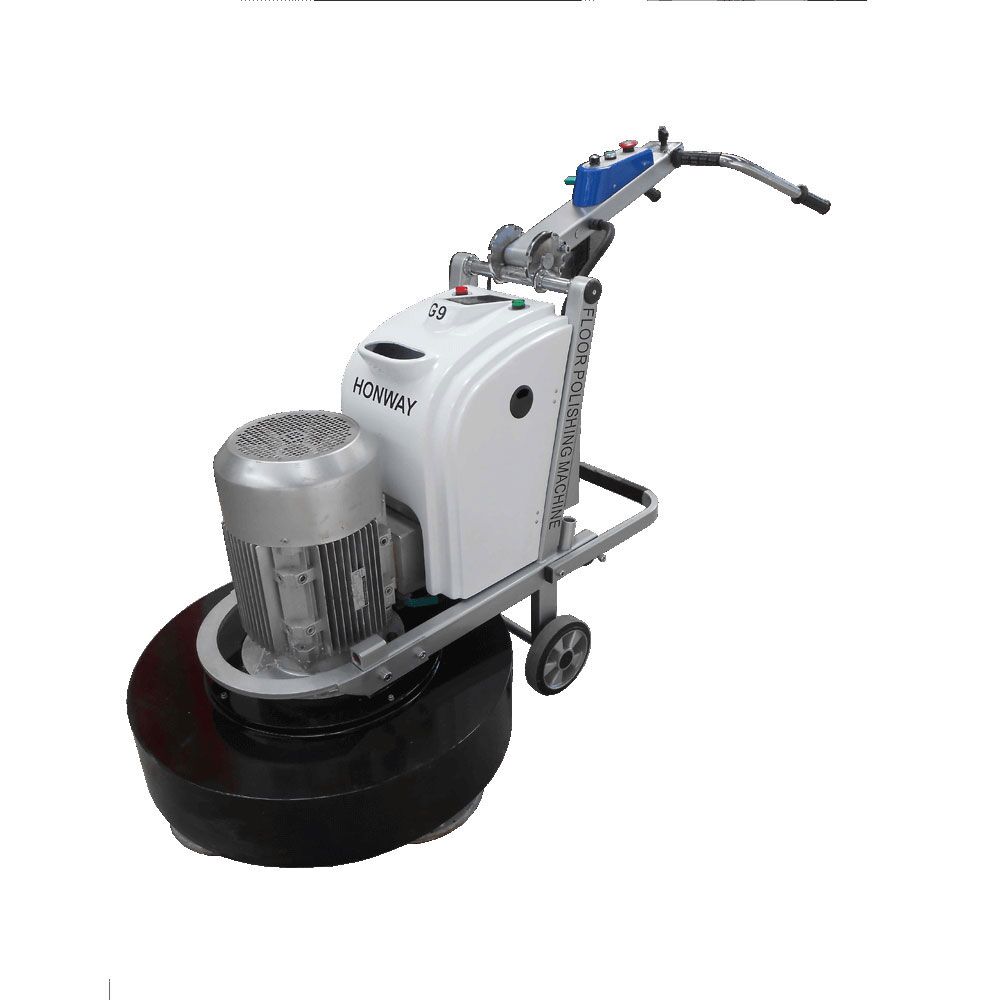

HW-G9 is a 4 head grinder with an all gear drive system that perfectly balances the machine and makes grinding completely level. The design of four abrasive plates to be more smooth and fast.

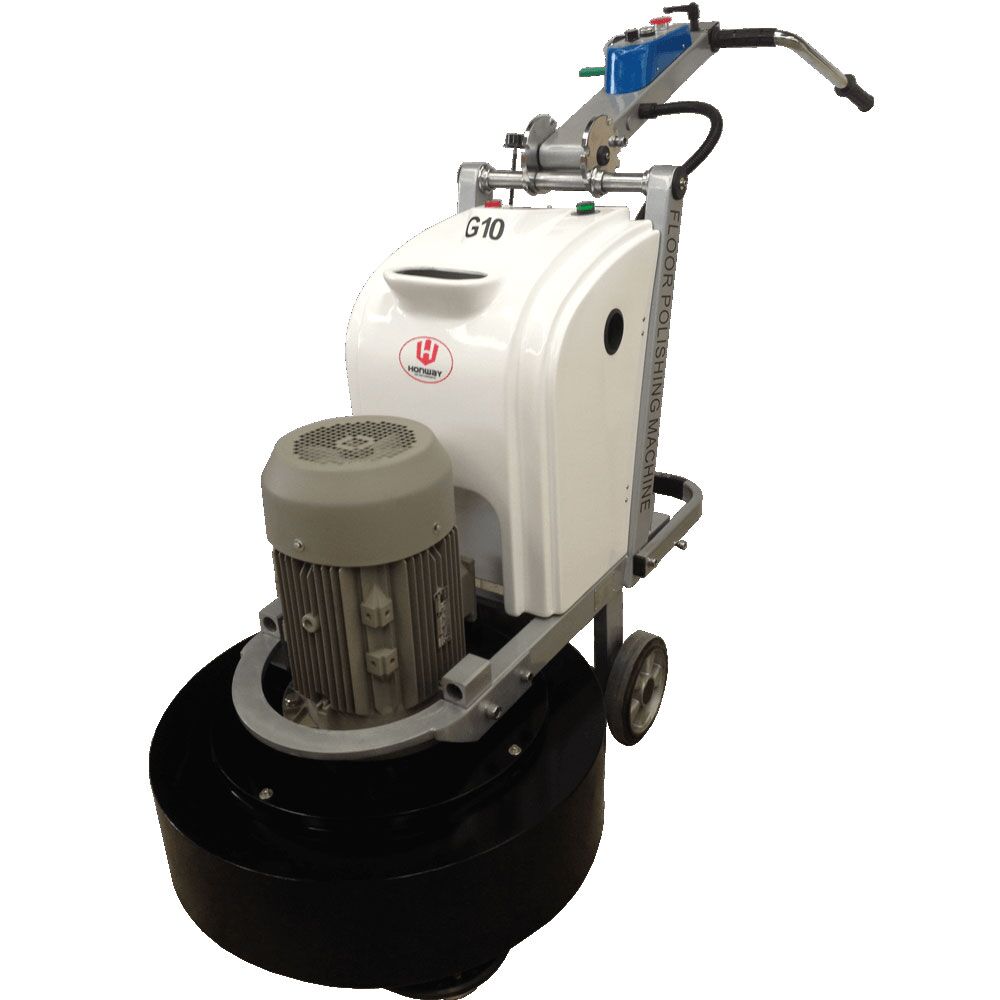

HW-G10, 10hp, grinding width 600mm, 4 grinding plates, 12 pieces of diamond tool. With the magnetic disk and Velcro, It is very easy and shift to change diamond tool. The design of square disc plate could 100% touch wall and grind corner.
HONWAY square plates would not leave trace on floor, as I know some machines like G10 usually leaves trace on floor, which is caused by the design problem, as the disc plate can’t cross very well.G10 would have not this problem.
Concrete floor preparation
Concrete grinding and surface leveling
Horizontal floor surface preparation
Concrete floor repairing
| Model | HW-G9 | HW-G10A | HW-G10B |
| Power | 380V/11KW | 220V/7.5KW | 380V/7.5KW |
| Hertzs | 50/60HZ | 50/60HZ | 50/60HZ |
| Inverter | 15KW | 11KW | 11KW |
| Current | 22.6A | 26.7A | 15.5A |
| Plate Speed | 300-1800rpm | 300-1800rpm | 300-1800rpm |
| Disc Diameter | 250mm*4 | 250mm*4 | 250mm*4 |
| Extra Weight | 20KG | 20KG | 20KG |
| Work Area | 900mm | 650mm | 650mm |
| Weight | 300KG | 270KG | 270KG |
| L*W*H | 1200*700*1130mm | 970*650*950mm | 970*650*950mm |
